TL;DR: Summary
Choosing the right standing seam panel is about matching the fastening method to your roof’s slope and your budget.
- Nail Strip: The most affordable and fastest to install, but prone to "oil canning" and restricted to shorter lengths due to expansion/contraction.
- Snap Lock: The standard for Seattle residential roofs. It uses clips to allow the metal to breathe, providing a great balance of durability and cost-efficiency.
- Mechanical Seam: The "Egghead" choice for low-slope roofs or extreme weather. Panels are physically folded together with a machine and injected with sealant for the ultimate waterproof seal.
Are you overwhelmed by all the different metal roofing terms (nail strip, snap lock, mechanical seam) and unsure which one’s actually right for you? Are you frustrated by how hard it is to understand which one will prevent leaks and best protect your Seattle home?
At RoofSmart, we understand that choosing a roof can be overwhelming and difficult. That’s why we recommend roofing options to each individual customer based on their needs, preferences, and budget. We help hundreds of customers each year weigh their options and find the best roof for their home.
In this article, we’ll walk you through the three main types of standing seam metal roof panels, nail strip, snap lock, and mechanically seamed, and break down how they differ in cost, performance, installation, and weather resistance.
You’ll leave this article knowing exactly which panel is best for your specific roof type, budget, and long-term goals.
What are the different types of standing seam panels?
Standing seam panels are fastened and sealed in a variety of ways. To help you understand which panel type is best for your roof’s needs, here is an overview of the 3 different types of standing seam panels.

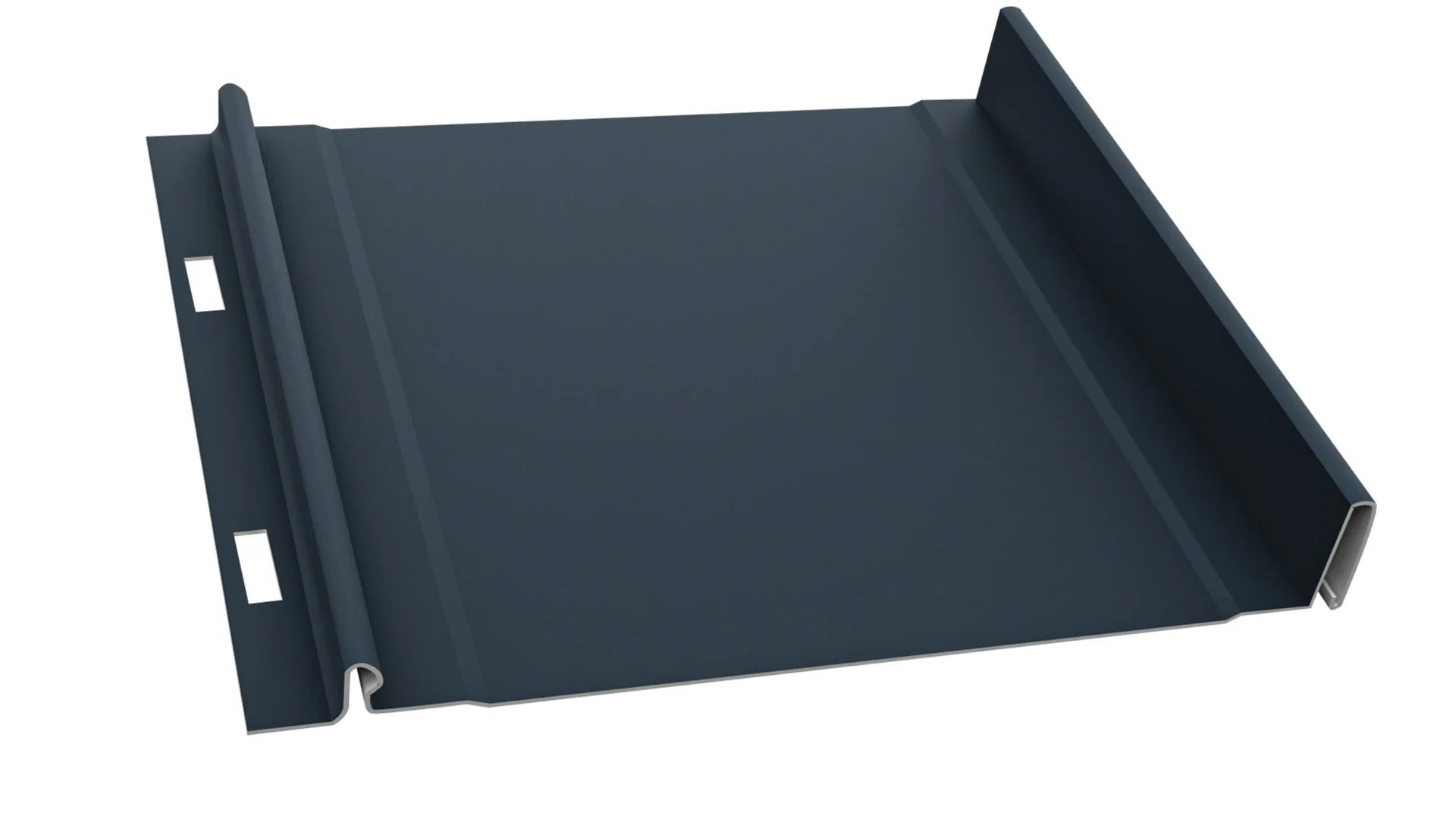

1. Nail Strip Panels
Image from Western States Metal Roofing
Nail strip panels are fastened into place using nails. The panel has designated slots where you screw the nails in place and then the next panel snaps in place over it to cover the nails.
Pros:
- Most affordable
- Easiest and quickest to install
- The screws are concealed, making the roof watertight
Cons:
- The screws cannot be too tight or too loose
- The metal can rip if the screw is too tight
- This panel is most likely to fail out of all 3 options
- Oil canning is more likely
- Limited to 30-foot strips because the panel expands and contracts
2. Snap Lock Panels
This type of panel snaps together like the nail strip does. However, the key difference is that the panels are fastened together with clips instead of using the nail strip.

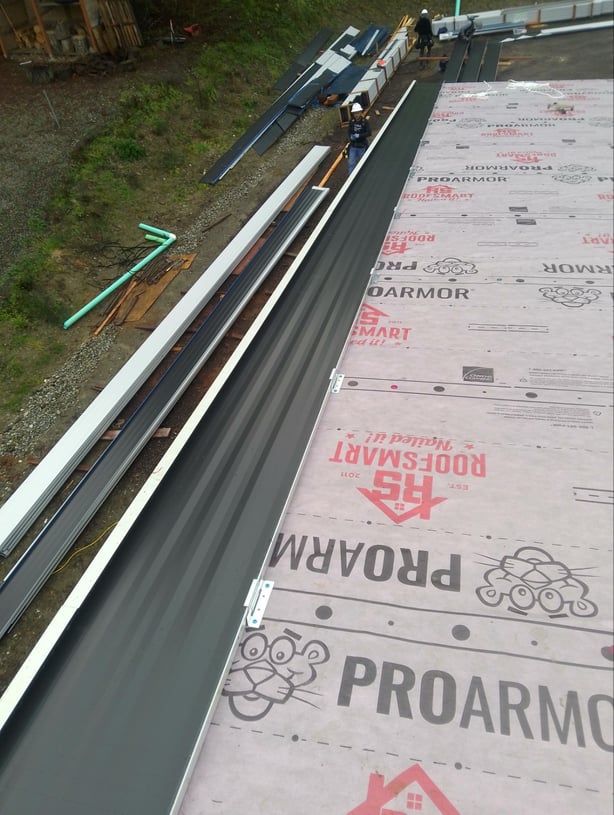

In the image above, you can see the clips securing the panel in place along the edge. These are used instead of screws to hold the panel in place (notice how there are no slots for the screws).
Snap lock standing seam panels are the most common metal roof choice for Seattle homeowners because they offer the best balance of cost and protection.
Pros:
- Use of clips makes the panels more secure and durable
- Can be used on steep, regular, and some low-slope roofs
- Great waterproofing because the clips are concealed by the panels
- Quicker and easier installation than a mechanically seamed roof
Cons:
- More expensive than nail strip panels
- Only a roofer with experience can install it correctly
3. Mechanically Seamed Panels

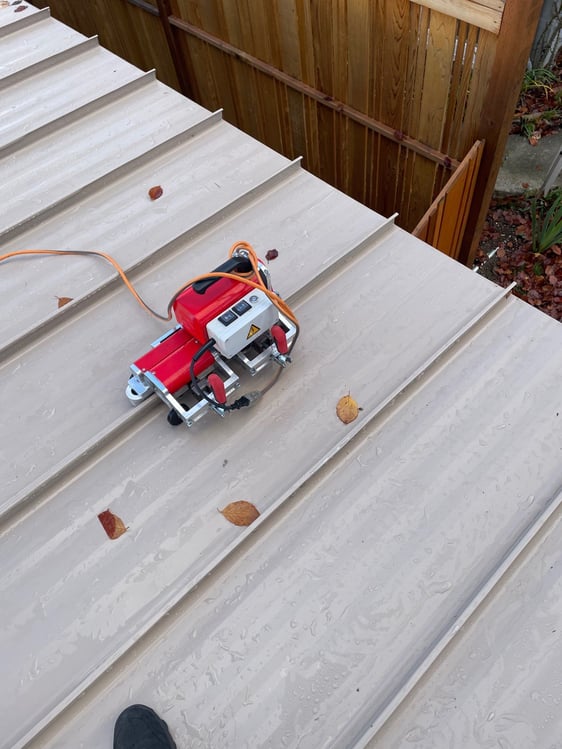

Mechanically seamed panels have the best waterproofing out of all the options because they are sealed together using a special machine.
Basically, you run the machine over it, and it folds the metal together. Butyl is injected at the seam of the panel before it's mechanically seamed to add extra protection.
You can do a single fold or a double fold.
- Single lock: This is best if your Seattle home has a low slope and a metal roof, but you want to make sure that it’s protected from standing water. Mechanical seaming strengthens the seam between the panels so that no leaks can happen.
- Double lock: For most Seattle area homeowners, this is probably not necessary. Double lock seams are the highest level of waterproofing that you can get on a metal roof, but they are really only needed in extreme weather conditions with snow. If you live in Snowqualmie Pass, double lock panels might be useful, but we don’t get enough snow around Seattle to warrant it.

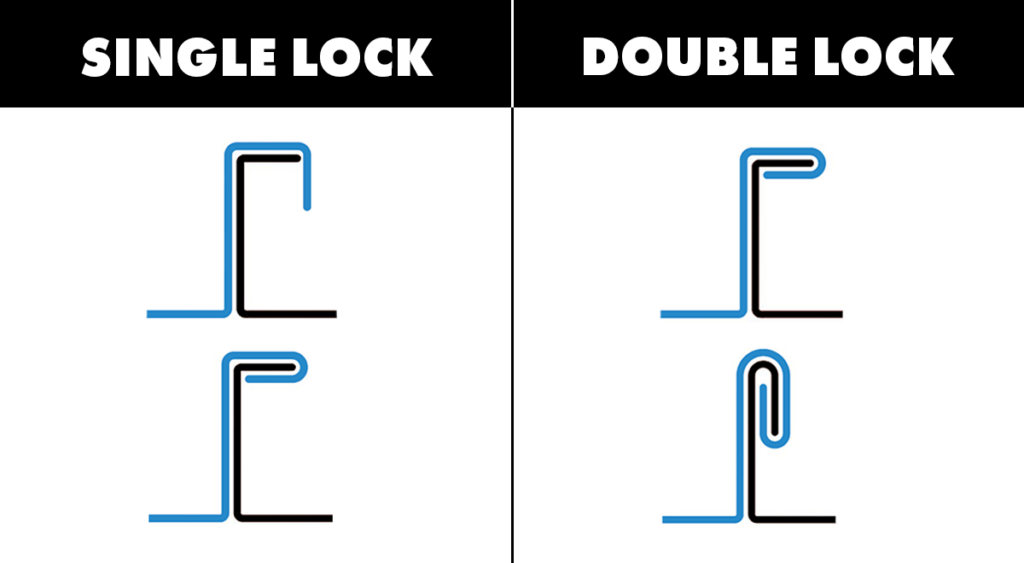

Here's the difference in how single lock and double lock seams are folded:
Image from Sheffield Metals
Here are the benefits and drawbacks of mechanically seamed panels:
Pros:
- Best waterproof metal roof
- Good for extreme weather conditions (like snow)
- Great for installing metal on extremely low-slope roofs
Cons:
- Most expensive and labor-intensive to install (especially with double lock)
- Not really needed in Seattle (unless you have a low-slope roof)
How do I know which type of standing seam panel is right for my Seattle roof?
With so many options and factors to consider, it can be difficult to make your decision. Make sure to consider which panel best fits your needs and budget.
Standing seam metal roofs are expensive, but they offer you great value by being strong, durable, and lasting for 50+ years.
Nail strip panels are best for you if you want to cut down on costs as much as possible, or you want a quick installation.
Snap lock panels are a great option if you want a panel that will stay secure and avoid damage even while the metal expands and contracts. This is a good middle ground for getting great protection from your metal roof without the extra cost of mechanical seaming.
We recommend snap lock style panels for most Seattle homeowners for their durability and leak resistance.
If you have a low-slope roof, mechanically seamed panels are a great option for you. However, if you live in the Seattle area and have a regular roof slope, you probably don’t need mechanical seaming. A regular snap lock roof should be enough protection against leaks and water damage.
How Much Will a Standing Seam Metal Roof Cost You in Seattle?
Now that you understand the pros and cons of nail strip, snap lock, and mechanically seamed panels, you’re better equipped to choose the right standing seam metal roof for your Seattle home. Whether you're prioritizing cost, durability, or waterproofing, there’s an option that fits your specific needs.
But we know that understanding the types of panels is just one part of your decision. The next big question is: How much is this actually going to cost?
Your next step is to read “How Much Does It Cost to Install a Metal Roof in the Greater Seattle Area?”. This article will give you clear pricing ranges, explain what impacts the total cost, and help you budget realistically so that you can move forward with confidence.
Frequently Asked Questions
1. Why are Nail Strip panels considered the most likely to fail?
Nail strip panels are held down by screws through a fixed flange. Because metal expands and contracts in the sun, those screws can eventually rip the metal or back out if not installed with perfect tension, leading to potential leaks.
2. What makes Snap Lock the best choice for most Seattle homes?
Snap lock systems use hidden clips rather than a nail flange. This allows the panels to "glide" as they heat up and cool down, preventing the metal from warping or tearing while keeping all fasteners protected from the rain.
3. When is a Mechanical Seam actually necessary?
If your roof has a very low slope (where water might sit rather than run off) or if you live in a high-snow area like Snoqualmie Pass, a mechanical seam is necessary to ensure water cannot be forced between the panels.
4. What is the difference between a single-lock and a double-lock seam?
A single lock is a 90-degree fold, while a double lock is a 180-degree fold. For 99% of Seattle homes, a single lock or snap lock is sufficient; double locks are reserved for extreme commercial or alpine environments.
5. Does the type of panel affect the "Oil Canning" (waviness) of the roof? Y
es. Nail strip panels are the most prone to oil canning because they are pinned tightly to the deck. Snap lock and mechanical seam panels allow for more movement, which helps keep the roof looking flat and modern.
6. How much does a standing seam metal roof cost in the Seattle area?
Pricing varies significantly based on the panel type and gauge chosen. You can find a complete breakdown in our guide on how much it costs to install a metal roof in Greater Seattle.
7. Are there common myths about metal roofs I should know?
Many homeowners worry about noise or rust, but these are largely misconceptions. We’ve debunked 5 common metal roof myths specifically for our local climate.
8. Is a standing seam roof better than an exposed fastener roof?
For residential homes, standing seam is almost always superior because it eliminates thousands of potential leak points. Compare the two in our article: Exposed Fastener vs. Standing Seam.
9. What are the common issues found in metal roof installations?
Even the best panels will fail if the details aren't right. Check out our list of common issues with metal roof installations to ensure your contractor is qualified.
10. How do I know if my roof is a good candidate for a metal upgrade?
Metal isn't always the best choice for every structure, especially if you have existing moisture issues. Read is a metal roof right for me? to see if it fits your home’s needs.
